Electric Ball Valve Two Way Butt Welding Ball Valve 1 2" 3/4" High Pressure
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | FABIA |
| 証明 | ISO9001,CE,CCS,DNV |
| モデル番号 | 1/8インチ36インチ |
| ドキュメント | 製品説明書 PDF |
| 最小注文数量 | 1セット |
| 価格 | 交渉可能 |
| パッケージの詳細 | カートン/木製のケース |
| 受渡し時間 | 15-30勤務日 |
| 支払条件 | L/C、D/A、D/P、T/T、MoneyGram、Western Union |
| 供給の能力 | 週に100〜1000セット |
商品の詳細
| 製品名 | 電動高圧バット溶接ボールバルブ | バルブタイプ | 高圧球弁 |
|---|---|---|---|
| バルブ | 高圧 | 材料 | ステンレス鋼 |
| 繋がり | バット溶接 | 手術 | 電気 |
| メディア | 水、油、ガス | 圧力評価 | 高圧 |
| シール | PTFE/EPDM | 圧力範囲 | 0-10MPA |
| サイズ | 1/2-8インチ | 証明書 | ISO 9001 |
| 温度範囲 | -20°Cへの+120°C | ||
| ハイライト | Electric Ball Valve 3/4”,Electric Ball Valve 1 2”,2 Way Butt Welding Ball Valve |
||
製品の説明

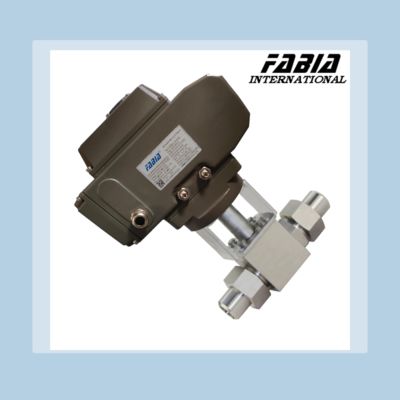

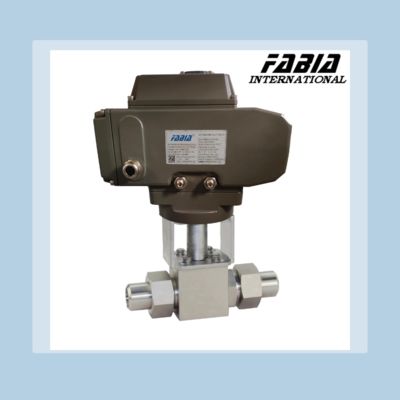

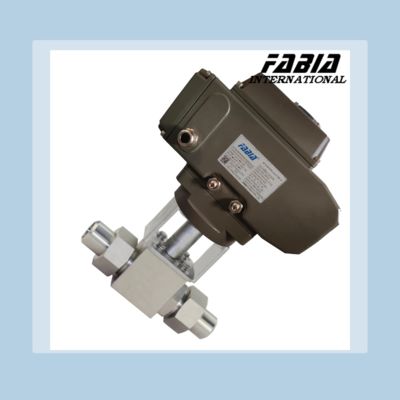

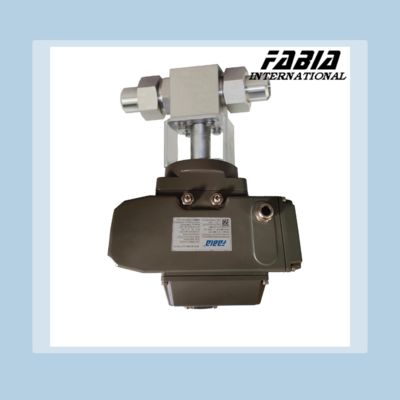

FABIA Electric Two Way Butt Welding Ball Valve High Pressure
1. Description:
Electric two-way ball valve is usually connected by the electric actuator and the valve, and becomes an electric valve after installation and debugging.
Electric two-way valve uses electric energy as the power to connect the electric actuator to drive the valve and realize the switching and adjusting action of the valve.
So as to achieve the purpose of switching or adjusting the pipeline medium.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Electric High Pressure Two Way Butt Welding Ball Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Used to control the opening or closing of cold water or hot water air conditioning system pipes, to achieve the purpose of controlling room temperature.
- Driver is driven by a single hysteresis synchronous motor, the valve spring is reset, the valve is not working when it is normally closed, when it needs to work, the thermostat provides an open signal, so that the electric valve is connected to the AC power supply and action.
- Open the valve, chilled water or hot water into the fan coil, to provide cold or heating for the room, when the temperature reaches the thermostat set value,
- Thermostat makes the electric valve power off, the reset spring to close the valve, thus cutting off the flow into the fan coil,
- through the valve closed and opened, so that the room temperature is always maintained in the temperature control set temperature range.
