Pneumatic ICER Diesel Engine Exhaust Gas Treatment Butterfly Valve Smart Control For Environmental Protection Industry
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | FABIA |
| 証明 | ISO9001,BV,CCS,DNV |
| モデル番号 | 2インチ 100インチ |
| ドキュメント | 製品説明書 PDF |
| Minimum Order Quantity | 1 set |
| 価格 | 交渉可能 |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
無料のサンプルとクーポンを私に連絡してください.
WhatsApp:0086 18588475571
ウェイチャット: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| Product Name | ICER Diesel Engine Exhaust Gas Treatment Butterfly Valve | Valve Application | Ventilation |
|---|---|---|---|
| Valve Material | Stainless steel | Valve Connection | Flanged |
| Valve Operation | Pneumatic | Valve Certification | BV,DNV,CCS |
| バルブ圧力 | ≤0.25MPa | Valve Seal | Stainless steel |
| Valve Size | 2-100 inch | Valve Temperature | 500℃ |
| Valve Type | Butterfly | ||
| ハイライト | パネムICERバタフライバル,環境保護産業 バタフライバル,スマートコントロール パネマティックバタフライバル |
||
製品の説明

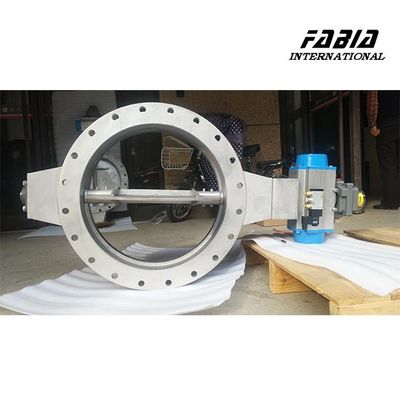

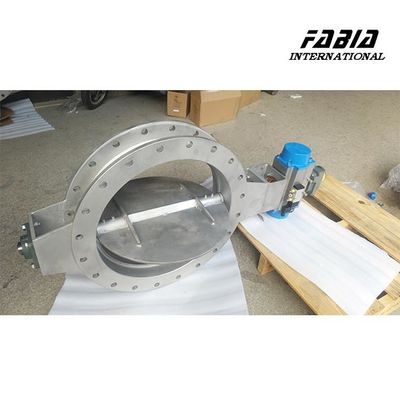

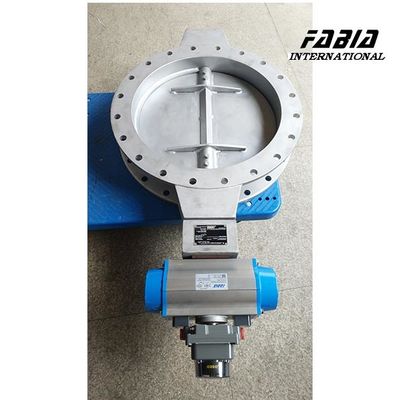

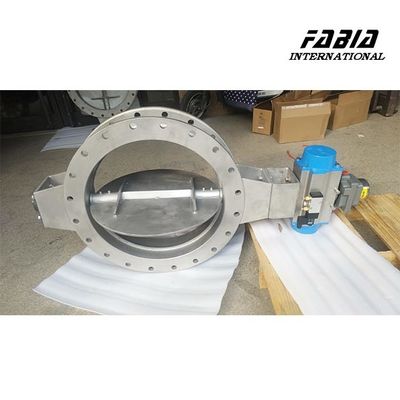

Pneumatic ICER Diesel Engine Exhaust Gas Treatment Butterfly Valve Smart Control For Environmental Protection Industry
1. Description:
ICER Diesel Engine Exhaust Gas Treatment Butterfly Valve is mainly used to deal with diesel engine exhaust gas treatment system, through the supporting actuator to adjust or cut off the exhaust gas in the system aisle, so as to achieve Marine nitrogen
oxide emissions to meet the requirements of relevant standards. At present, the main application of waste gas treatment systems are SCR system, ICER system, etc.
In addition, FB-D-3 series butterfly valves are also widely used in the road industry, such as the exhaust gas exhaust pipe
system produced by the boiler in steel smelting, the catalytic combustion equipment pipe system in VOCs (RTO combustion furnace) and the exhaust gas pipe system produced by other combustion equipment.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Flange type heavy-duty ventilation butterfly valve | |
| Size: | 2inch ～ 100 inch | |
| Material: |
316/316L/304/304L/ Corten |
|
| Connection type: | Flange Connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | ≤0.25Mpa | |
| Temperature: | -≤500℃ | |
| Model: | FB-D-3.......... | |
3. Features:
- Simple and light in structure
- Suitable for low pressure air or other gas flow, pressure control and high temperature gas
- the main structural components of the valve are welded
- CCS&DNV Type approval certificate, BV French Classification Society Factory approval certificate and product type approval certificate.
- High Efficiency Emission Reduction: Optimized design significantly reduces ship emissions, complying with stringent environmental regulations.
- Durable and Reliable: Made of high-quality materials with a robust design to ensure long-term stable operation, reducing maintenance frequency and costs.
- Smart Control: Equipped with advanced control systems for automated operation, enhancing operational efficiency and safety.
-
Multiple Safety Guarantees: Incorporates multiple layers of safety protection mechanisms to ensure safe and reliable valve operation.
-
Global Standard Certification: Certified by international authorities, ensuring product quality and performance meet global standards.
